396/427/454  WITH ALL HORSEPOWER COMBINATIONS. up

CHARTS BELOW:

CheckENGINE RESTORATION -STAMPING SERVICE-

MASSIVE INVENTORY:SEE CHART AT BOTTOM OF PAGE. We can pick  out a VINTAGE dated ENGINE BLOCK AND HEADS appropriate for your the production date of your car. U-furnish  vehicle serial number.

CHANGING INVENTORY OF 150-200  BLOCKS AND HEADS TO CHOOSE FROM: 265/283/327/350/

Key Benefits

  • ^MASSIVE SELECTION  OF BLOCKS AND HEADS-NOT THAT FREEZE CRACKED STUFF FROM BACK EAST!!  INTAKES  TO CHOOSE FROM THAT ARE CLEANED-MAG CHECKED-  AND ALL BIG BLOCKS ARE PRESSURE TESTED TO 45 PSI  AT OUR FACILITY!!!
  •
  • PRO  STAMPING BY THE ORIGINAL " ENGINE LOCATOR"  ---SAN DIEGO. OVER 20 YEARS SERVICE
  • SHIPPING VIA TRUCK -CF- COMMON CARRIER WITH  30 % DISCOUNT PASSED ON TO CUSTOMER.
  • ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  • PRI

E-mail:

ENGINE BLOCK WAREHOUSE--see sub-choices on left side  INDEX: CLICK BUTTONS ON LEFT:       OR these:   283 BLOCKS ,   327 BLOCKS

427 BLOCKS(396 TOO)

More:  Photos can be loaded in 10 minutes !--

complete videos  available    call  858-864-2883

   yes -bare blocks -  bare blocks are over 18 yr. of age. = vintage!!   like fine wines  all this stuff just keeps getting better.

WE HAVE  (19)   1956-82 PARTS/PROJECT  CARS !!

Key Benefits

  • ^MASSIVE SELECTION  OF BLOCKS AND HEADS-NOT THAT FREEZE CRACKED STUFF FROM BACK EAST!!  INTAKES  TO CHOOSE FROM THAT ARE CLEANED-MAG CHECKED-  AND ALL BIG BLOCKS ARE PRESSURE TESTED TO 45 PSI  AT OUR FACILITY!!!
  •
  • PRO  STAMPING BY THE ORIGINAL " ENGINE LOCATOR"  ---SAN DIEGO. OVER 20 YEARS SERVICE
  •
  • "  Graining service"a "grained" block.=  grained with
    the factory broach lines   -- direction is front to rear of the car.
    "in-line with car"  -------- they (GM's blcoks) never had circular machining lines
    on the deck.   - all the GM blocks were factory Broached or  "surfaced with a Shaper" producing straight lines on all the surfaces including
  • the oil pan surface !!
    GM broached them all -- this is  necessary for correct finish before stamping for authenticy and to pass proper Judging Criteria.
  •
  • SHIPPING VIA TRUCK -CF- COMMON CARRIER WITH ~ 25 % DISCOUNT PASSED ON TO CUSTOMER.
  • ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  •
  •  Some typical -standard good questions:

  • Q: Why was the block decked?
  • A: To true up the deck  &   To get rid of the old numbers  and put the factory grain/broach lines in it to restamp for the customer,    This way We do not have to send it back to our  machine shop for this operation.   We have them do all operations  so it is ready to ID (stamp for restoration),  this saves a  lot of time and labor/ transportation etc.

  • Q:  What is your guarantee on the block?
  • A:  Guaranteed rebuildable.
    if the  your machinist puts a cutter thru the cylinder wall - he owns it.   Fair ?
  •
  •  ENGINE ASSEMBLIES:

  • We build complete "Long block assemblies" -built /balanced / done- from pan up to and including heads installed with new push rods and rocker arms adjusted and test run on a $30K mechanical engine run-in machine- spins the balanced assembly at about 350rpms - compression tests are done as well a complete visual inspection of plugs -check for plug leaks,  oiling system etc. , includes the  harmonic balancer installation labor but not the part.    No sheet metal, i.e.
  • no timing cover, no oil pan, no valve covers or intake --they are all optional -we carry a massive inventory of all those parts as well as exhaust manifolds, carbs 2x4 setups.
    rebuilt and stamped i.d. to your Corvette with codes. correct castings etc. dates.
    for your corvette:
  • 283's / 302's / 327's/350's   $4,850 - $5,600  "Long block assemblies" -built /balanced for "common" 1963-75 VERSIONS,  NOTE:   $$ engines 1955-1965  are  naturally "dependent on  "Special heads and dates"  some less and most can be much more especially the 1957 #997 heads and 461x heads for late 1960 engines thru 1964 Corvette engines.    so  call or E-mail .... for a Quote on your particular application.........    David Crane

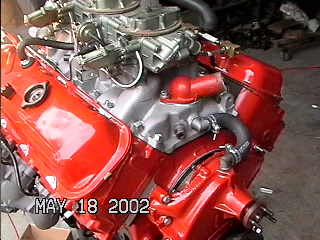

    PICTURED BELOW IS A COMPLETE LONG BLOCK ASSEMBLY WITH THE ADDITION OF VALVE COVERS, TIMING COVER, INTAKE MANIFOLD AND HARMONIC BALANCER  -This particular engine is a 327/340 HP 1963 restoration

    Engine for Eric Gordon of Lake Worth,  Florida.

    PI



    CRane     Corvettes 4687 Chateau place    San Diego,  Ca.   92117



    Contact:
    E- mail
    Sales:  corvette4u@aol.com    NEW PHONES:    ORDER LINE::: PH:

    Quote and order  LINE:::::::::: :858-864-2883


  • ALUMINUM intake manifolds Range from:  $475-- $675  naturally "dependent on  "Special casting numbers  and dates"   for a restored like new one.
    additional parts:
    we also have: click the banners exhaust manifolds carburetors ,       Camshafts etc.-
    David
    Postal/shipping address: Crane's Corvettes
    4687 Chateau place             San Diego, Ca. 92117
  • 1956-57   very "Complete Engines below

  •

  • ^^^

  •
  • Camshaft Grinding Process
  •
  • NOTE: ALL BLOCKS LISTED COME WITH MAIN CAPS THAT IS IT. ALL OTHER PARTS ARE EXTRA ---SINCE MOST OF OUR CUSTOMERS ARE BUYING DATED
    BLOCKS FOR THEIR CAR. SOME BLOCKS HAVE PARTS WITH THEM OR
    ARE SHORT BLOCK ASSEMBLIES OR ARE COMPLETE ASSEMBLIES WITH HEADS.
    PLEASE BE SPECIFIC"  AS TO WHAT YOU WANT AND WHAT YOUR NEEDS ARE FOR YOUR RESTORATION.

    Long block assemblies come with Rebuilt HEADS

      "BARE HEADS" come w/ PUSHROD GUIDE PLATES"  AND STUDS,,  USUALLY NO VALVES OR SPRINGS AS EVERYONE BUYS THOSE NEW ANYWAY- THESE PARTS ARE DISCARDED DURING CLEAN AND MAGNAFLUX PROCESS in the machine shop.

396 & 427 ENGINE BLOCKS-

Note  Rule -1- : 425 hp,  435hP, and L-89 & L-88 engines used  4-bolt blocks.  "special hi-perf."  &  "heavy duty"

----separately:    All  (hi-perf)   390 hp and 400-hp Corvette Engines used  2-bolt main blocks.  and the same castings below were used and machined at Chevrolet for either 2   or   4 bolt mains as chevy had 2 machining Lines separated by the process of 2 bolt v.s  4-bolt!

^^^^Heads ^427 sp. hi. perf. "Rectangular port

note:  all 427  heads are cleaned ,baked, mag checked , guaranteed rebuildable

  1965   #3856208  pair (B-25-65  #208 HEADS)--- good for Z-16 chevelles and Corvettes

                  $3,600   no porting -bone stock.



  •   1966   #3873858  pair dated J-2-5  & J-=2-5 pair  -sold  (scott)

  • -----------pair dated   A-26-6  & A 31-6  pair   $call

  • ---------  pair dated B-25-6 & C-16-6   pair  $call

  • ----------- pair dated D-28-6

  • ---------  pair dated:   E-2-6 & E-2-6   $call

  • ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^

  • 1967

  • #3904391 pair for an Early '67 Corvette -like a Sept -oct. '66 dated car ..hi-perf -X.they are F-22-6 and G-9-6 pair  -sold

  • ---------------pair dated J-10-6  and J-12-6

  • -----------   pair dated  L-15-6   and L-10-6 pair

  • ----------- pair  both dated D-1-7 /D-11- 7  pair $  call

  •

  •    ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^1965-1972 ^^^^Blocks^^^^^^^^^^^^^^^^^^^

    #962   "STANDARD BORE"  396 4-BOLT  DATED -  C-29-5   -decked GRAINED   $ call

#962 4-BOLT BORED TO FRESH 427 STD.- DATED  d-9-65 --decked GRAINED

#962 4-BOLT BORED TO FRESH 427 STD. - DATED  D-9-5  APRIL 9 TH -

decked GRAINED



^^^^^^^^^^^^^^^^^^^^^^^1966----------------------------------------

 just in    :  #3869942    - 4-BOLT   I - 30 - 65=  Sept  30,  1965 =  is  standard bore,    premium block---(includes the $375 decking and graining cost+ mag check /cleaning included. ).

#942   J-15-65 (oct.)    2-BOLT    SOLD



#942    K-30-65   4-bolt   NOV. 30 1965  fresh .060" over  -$4,600  SOLD

#942    C -17- 6     4-bolt   1966  .030   $ call

#942    E -16- 6     4-bolt   1966  .030      $ call

#942   E-28-66  -  2-bolt  .060 -clean bore.      $ call

^^^^^^^^^^^^^^^^^^^^^^^^1967^^^^^^^^^^^^^^^^^^^^^

  #351 2-bolt  std. bore-  "running Long  block assembly"   -complete

engine::    H-31-6   Aug. 31st  1966 casting =  $9,200 good for 390 hp or 400hp car.

  #351   "4-bolt    .030 excellent used  I-26-66    call.. complete short-block   rack 4   sold

#351  4-BOLT L-27 -6    ?

# 351   2-bolt  A-26-7   .030  1-sleeve-professional- $4,500   will go .040  Rack 8- -sold

 #351 4-BOLT     C-15-7   std. bore       RACK= R.L.2  $ call

 #351 4-BOLT     D-11-7    .030 over      Rack= bldg A   $ call

^^^^^^^^^^^^^^^^^^^^^^^^1968^^^^^^^^^^^^^^^^^^^^^

 #321 4-BOLT J-29-7 .030 FOR  EARLY 1968 435HP, L-88, L-89  RACK= 9B  $ call

#321 Block Std. Bore = 2-bolt  390/400hp type dated  -1968 Model 427 390hp. Corvette no welding.  Not a restamp, original deck surface, water passages are free of excess rust, date cast Dec 26 or 28 1967. perfect for 1968 model car for restoration, not many left casting no. 3916321, & prefix TO229IL indicate a 390hp. Corvette, but could be used for a Copo Camaro  or Copo Duce Clone,  maybe even a Chevelle SS you decide. This Block is in excellent shape, $2,500



^^^^^^^^^^^^^^^^^^^^^1969^^^^^^^^^^^^^^^^^^^^^

    #270  just in    2-bolt  427 .030 - dated H-20-68  AUG. 22 '68 for an early '69 corvette

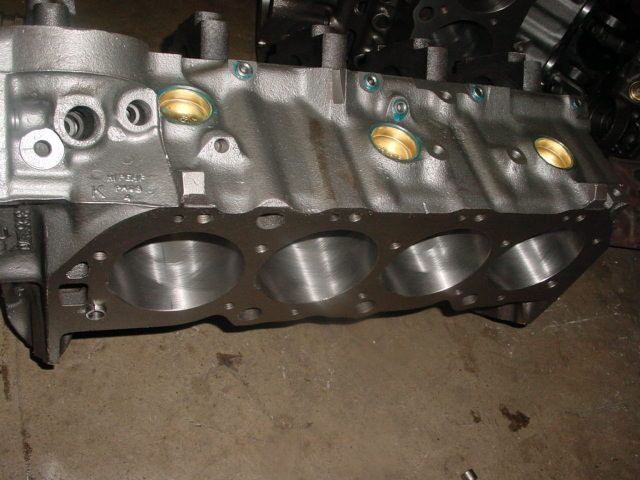

#270  THIS IS A 1969 427 4-BOLT STANDARD BORE (4.250) BLOCK, CASTING # IS 3955270, DATE CODE IS J-18-8(OCTOBER-18-1968),FRONT PAD T0929LR. CASTING # AND DATE CODE ARE VERY NICE AND CLEAR.THIS BLOCK  ALSO HAS THE BIG OIL GALLEY HOLES OVER THE OIL FILTER. THIS BLOCK HAS BEEN OVEN CLEANED(HAS NO RUST OR SCALE), SHOT PEENED AND MAGNAFLUXED. THIS BLOCK HAS NO CRACKS!! BLOCK HAS BEEN PRESSURE TESTED AND SLEEVED IN ALL 8 HOLES BACK TO STANDARD. ALL BOLT HOLES ARE FINE. NEEDS NO HELI COILS. THIS BLOCK HAS A EXCELLENT CAM THRUST FACE. BLOCK HAS A FRESH MOLY HONE AT STANDARD(4.250), LINE BORED,SQUARE DECKED, NEW CAM BEARINGS, NEW FREEZE PLUGS AND OIL GALLEY PLUGS.BLOCK HAS A CLEAN FRONT PAD READY TO STAMP YOUR #'S.THIS BLOCK NEEDS NO WORK!!!, IT IS READY TO STAMP AND ASSEMBLE.THIS BLOCK IS READY RUN AT NO RISK.I HAVE A MANY BLOCKS JUST LIKE THIS--   see the photos  below. --





#512 DATED ---- .std. - 2-bolt  D-20-9  april-22, 1969    2-bolt  $2,500 (includes the $200 decking and graining cost).  stamping not included.   Rack= bldg b

#512 DATED ----.030 over 2-bolt  H-22-9  August -22, 1969    2-bolt  $2,350 (includes the $200 decking and graining cost).  stamping not included.   Rack= bldg A

#512  G-31-70  2 BOLT  - .030 clean bore    Rack= bldg A $2,300

changing inventory  so  CALL..... 858-864-2883

  •



click here:  for "Corvette Movie" real nice movie clip  for "free -here" -it covers history+ big blocks racing.

396/427/454  WITH ALL HORSEPOWER COMBINATIONS. up to special high-perf........... CLICK BUTTONS ON LEFT.

""Engine components- click here""-camshafts-cranks-rods-oil pans"



Crane Corvette Supply amflag.gif (12532 bytes)   2ENG2.jpg (83841 bytes)

WE HAVE  (19)   1956-82 PARTS/PROJECT  CARS !!

1956-62  crane's 800-597-4132.



Postal/shipping   address:CRane     Corvettes 4687 Chateau place    San Diego,  Ca.   92117



Contact:
E- mail
Sales:  corvette4u@aol.com    NEW PHONES:    ORDER LINE::: PH:

ORDER LINE:::::::::: :858-864-2883

:::::::::::::::::::::::::: FAX::::::::::::::::::::::: 858-514-8398

"NEW:" USED PARTS toll free: (858) 514-8383

EARLY PARTS:---------------------- (858) 514-8383

CELL/Mobile COMMAND CENTER:::::858-864-2883

Feature 2



changing inventory  so  CALL..... 858-864-2883

1970 –350 ENGINE COMPLETE DATED A-30-70,

1971 MOTOR: #010 B-18-71

1965 FUELIE ENGINE CODE: HQ ORIGINAL --short block assembly -- sold

- dated B-3-65  standard bore,  original - #870 casting. $1,500.00

1980-- running motor -right out of car. complete or partial.-have intake with computer carb and smog system also
