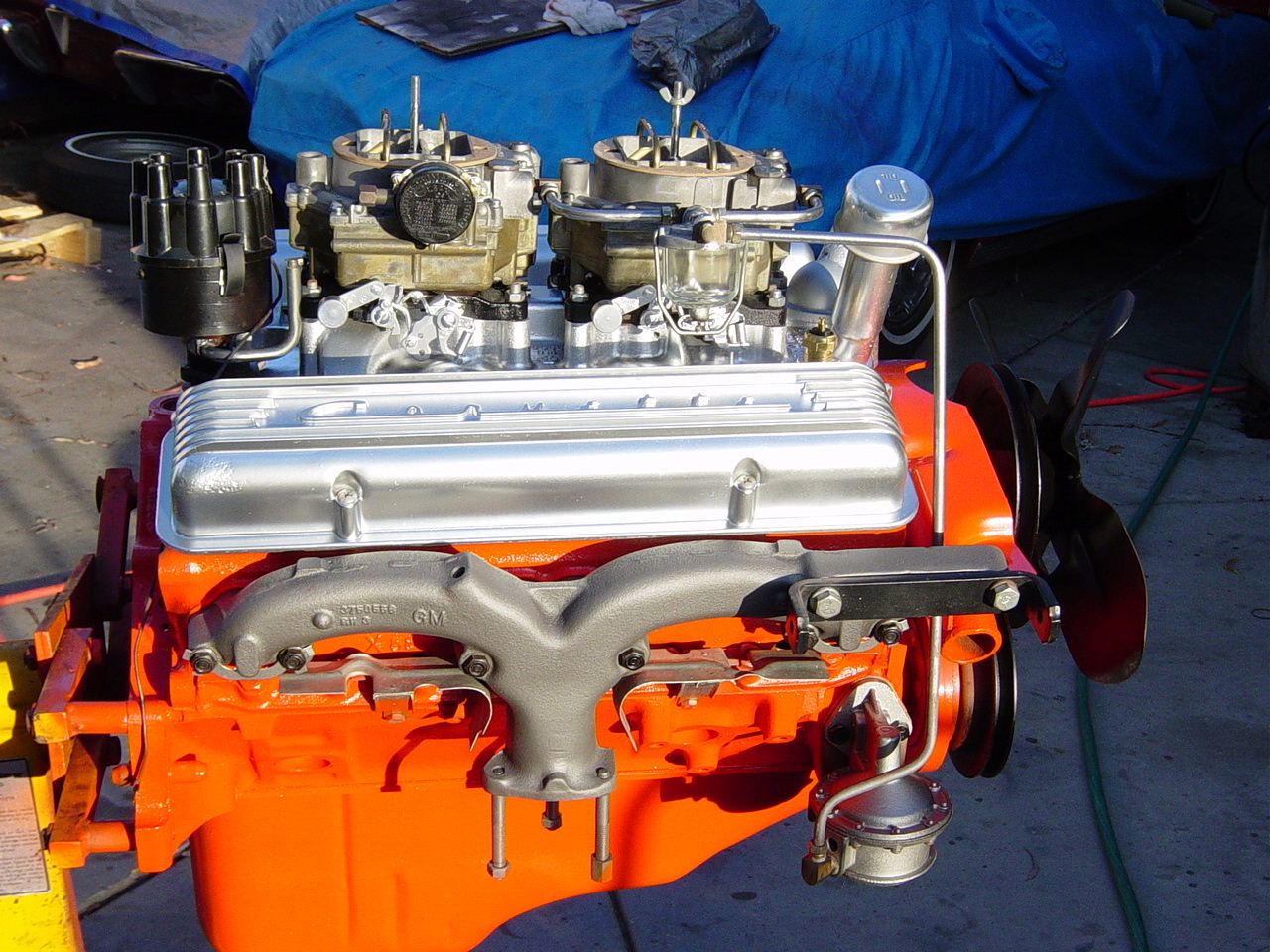

1958 Corvette Engine Professionally Rebuilt /Restored /Detailed.

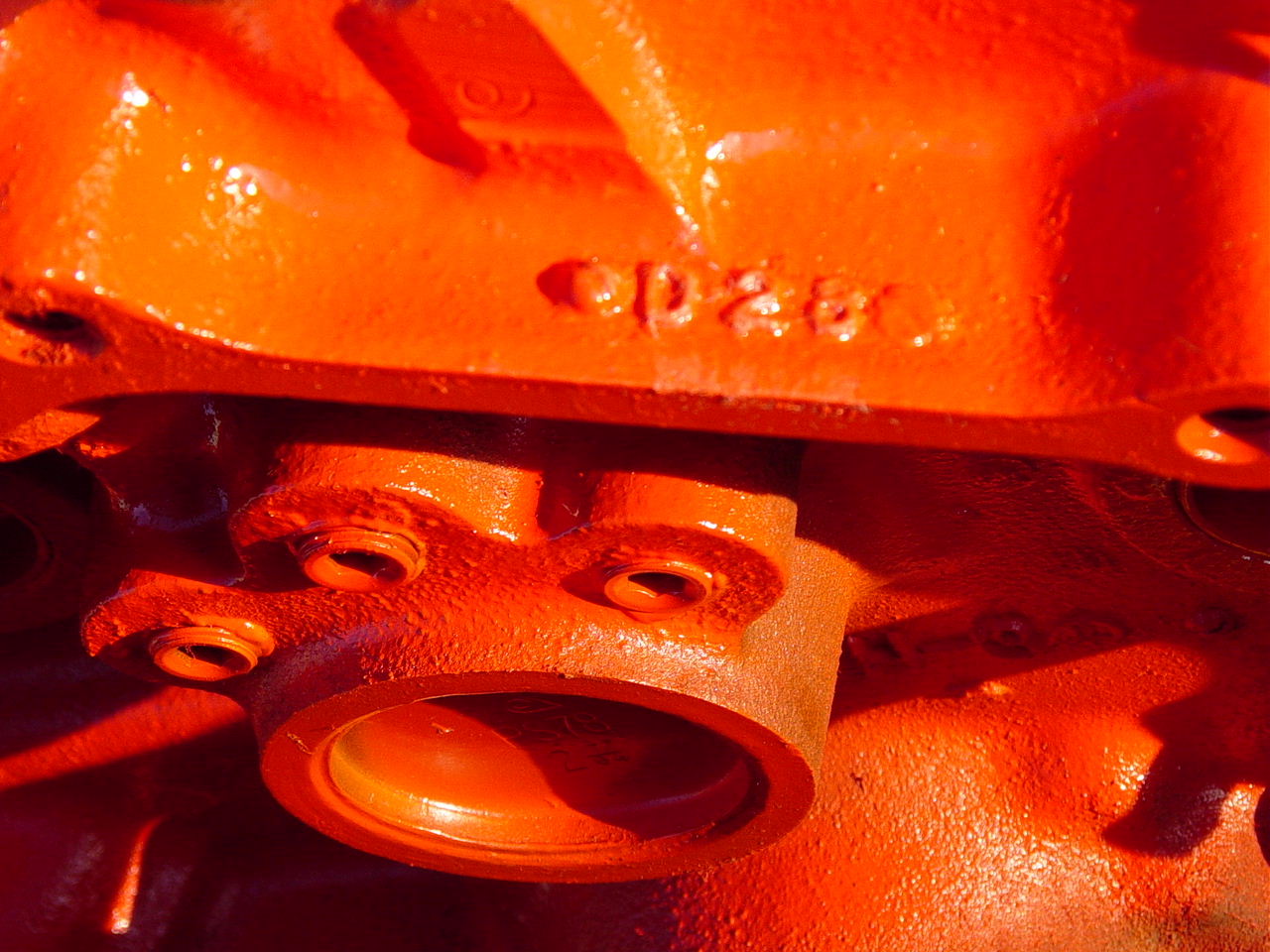

Engine Stamping F0408CU  flint,   "CU" = 270HP. dual quads, solid lifters =

= Assembly date  April 8th --date good for a late April ,all of May , June , early-July 1958 Corvette.

Above engine has  casting date of  D-2-58   #739 block casting -- also have one dated

K-28-7 (Nov. 28th 1957 for an  early 1958 corvette

                         Here is a listing of the Engine , specs and costs-


Done built  fully Balanced Long block assy.Solid lifter 270 HP engine $7,700

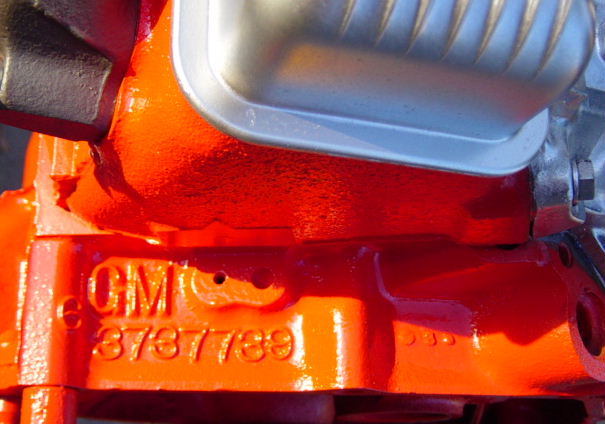

Engine Block Casting (iron pouring date) D-2-8  april 2nd 1958 - cast #3737739
Rebuilt Engine Head castings 3748770.     included in above price.
along with timing chain cover, harmonic balancer, pan installed,  " Silkscreen Oil canister.

Additional Components:
Distributor is 1110891 dual points Delco Remy -Complete rebuild,+ new points, rotor cap all delco. = $450 range
Waterpump - correct casting rebuilt , installed  $200
Correct corvette oil pan. $300
Engine mount front - installed. $100

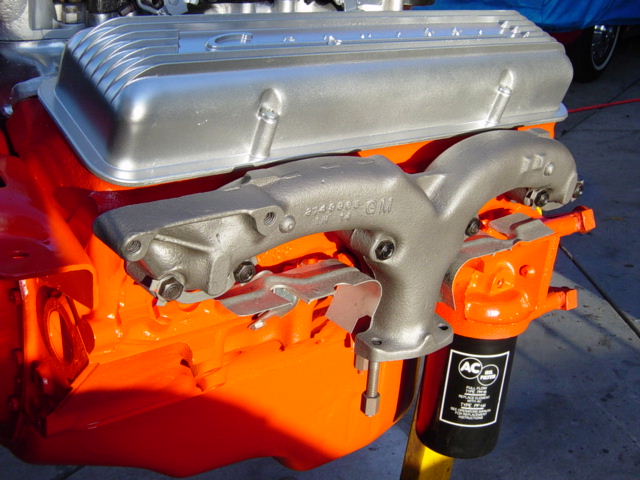

Exhaust manifold  RH right hand 3758556,  LH 3749965 mint cond. no pitting, restored, installed. $550 pair
Lower hi-perf deep groove, Crank pulley   $100
Waterpump Pulley -hi-perf deep groove. $100
Bellhousing casting # 3733365    $300  -included but not shown.
Corvette script" Aluminum Valve covers.  $350

Correct installed 4656  "AC"fuel pump"     $250
total of above installed parts ===============================  $2,750

Complete Dual quad carburetor system (correct original 270 hp carbs with 45 degree cut nozzles

, with oil cap, fuel line kit (new) ndw linkage and air cleaner assembly.   =  $3,900

 includes new linkage & air

cleaner assembly. assembled and installed on the engine. See photos below:

 includes all labor, parts and fasteners to assemble.

Total value 7700  + 3900 + 2750= package $14,350-----Note this price $

does not include all the dozens

 of hours to call and locate the 100's of parts to make and  build this correctly,

 or all the fasteners to do it.  also included is a $75 original water outlet,

exhaust manifold studs, exhaust bolts, French locks and washers, brackets (as shown)

and heat shields.
