Crane Corvette Supply amflag.gif (12532 bytes)   2ENG2.jpg (83841 bytes) CLICK= CLU TCH

  SHIFTERS

Muncie  Borg warner  corvette

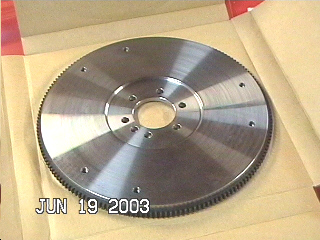

  new flywheels w/ new ring rears. this is a Dual disc flywheel used in 1969 -2ma6 option  and 1971  LS-6 corvettes -all    (note: "yes they are thinner - this is a copy off of Cranes orig. dual disc flywheel )"  we have new"  now $375 each.

   Regular 11"    and 10.5" new flywheels are  $240 each -

SERVICES:  COMPLETE 4- SPEED REBUILD SERVICE.  1956-82  CALL...

MASSIVE SELECTION  (100) hundreds !!  OF:   T-10's

 AND MUNCIES-M-21,, REBUILT $ CALL

M-20,,and M-21 $1,800 with all new gear sets or call for REBUILT $ CALL David   858-864-2883

M-22  4-speeds-- REBUILT $2,500 w/all new gears

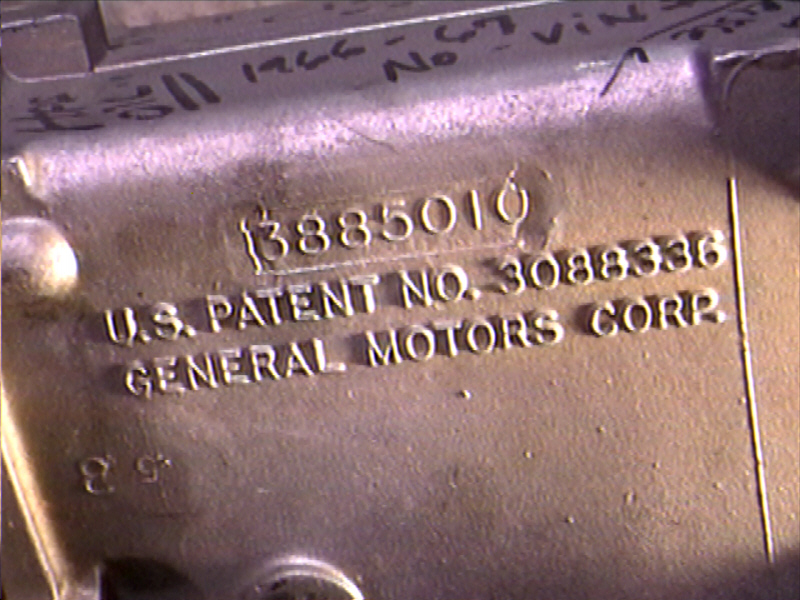

restored cases.!!!  vingage 1966-70 cases   5010 ,  660 ,  or  661

 REBUILT UNITS--DATED---  SEDavid   858-864-2883 E CHARTS BELOW

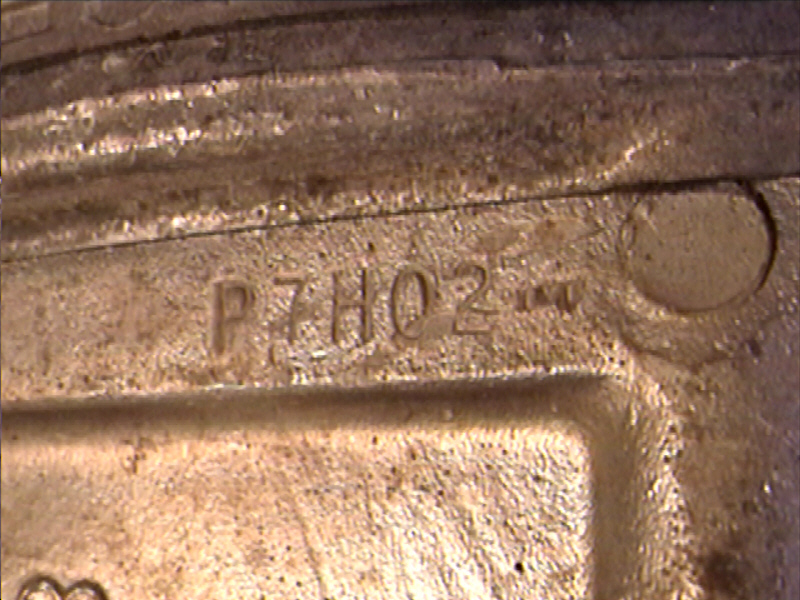

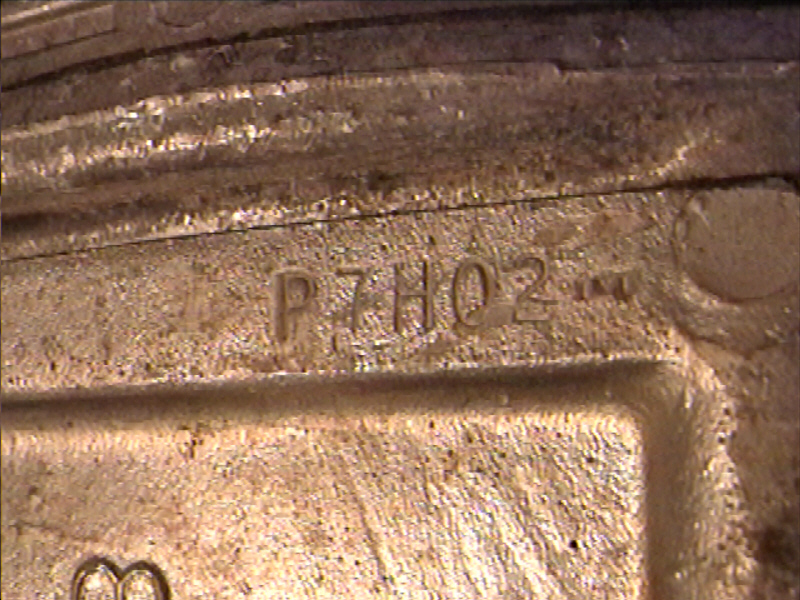

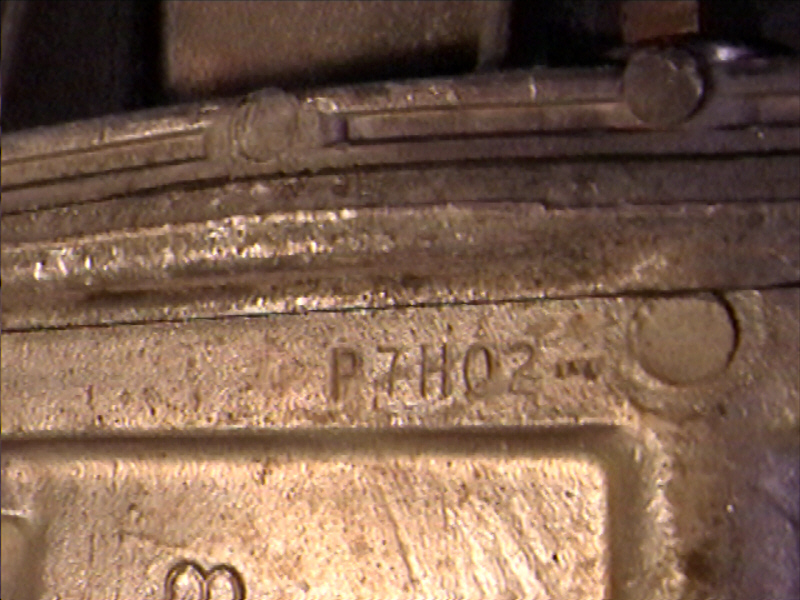

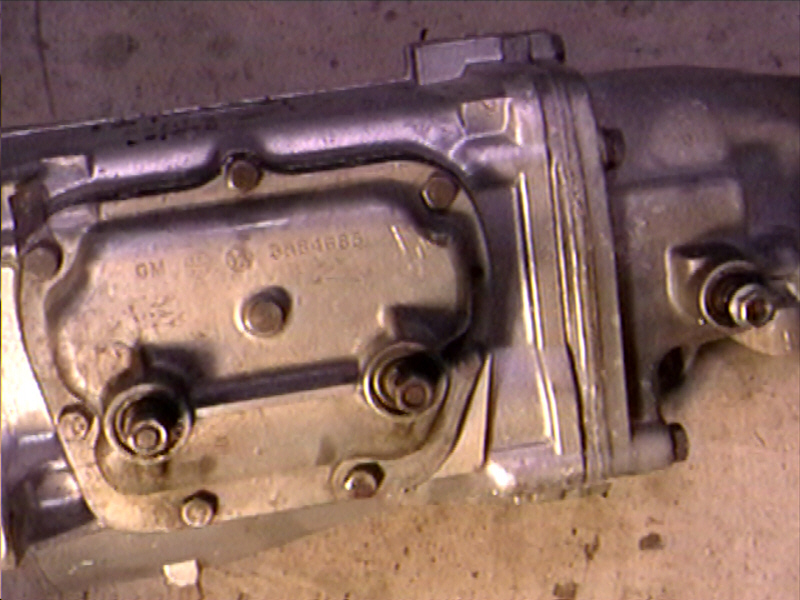

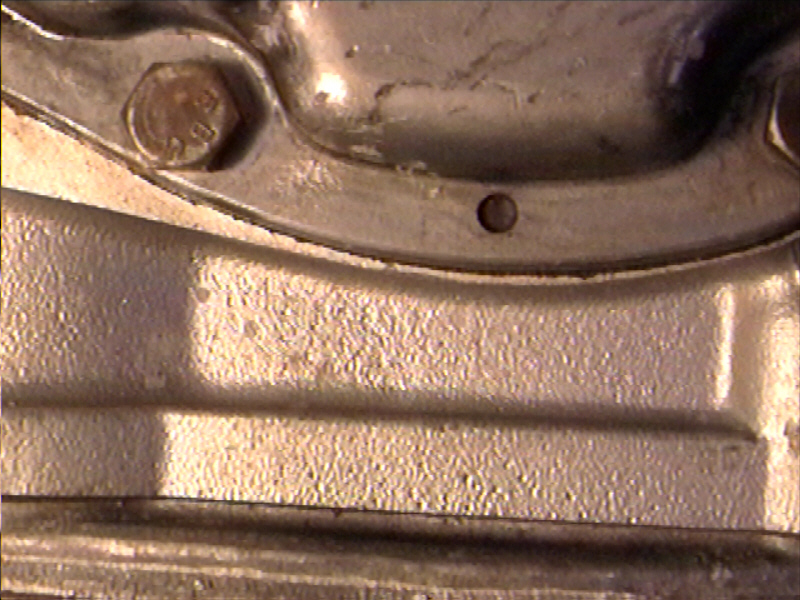

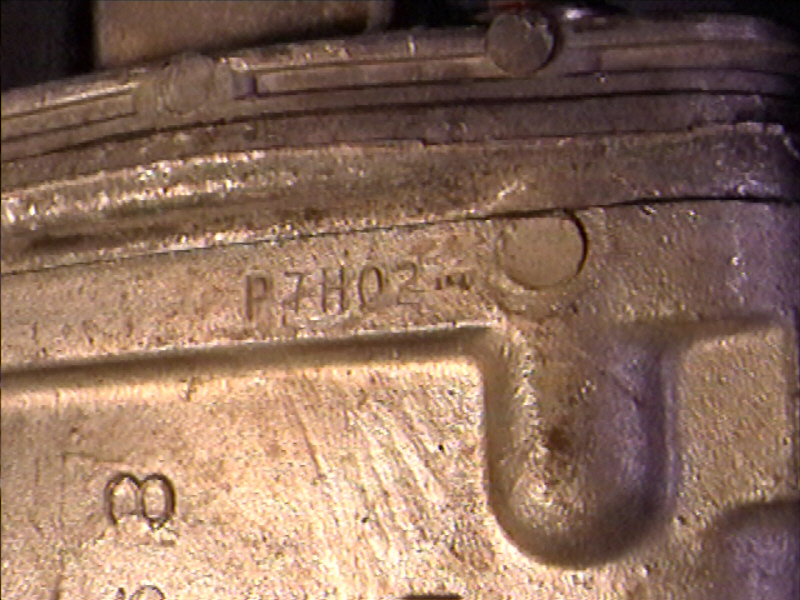

1967trans4.jpg (277876 bytes)  another view +1 more angle 1967trans5.jpg (256673 bytes)

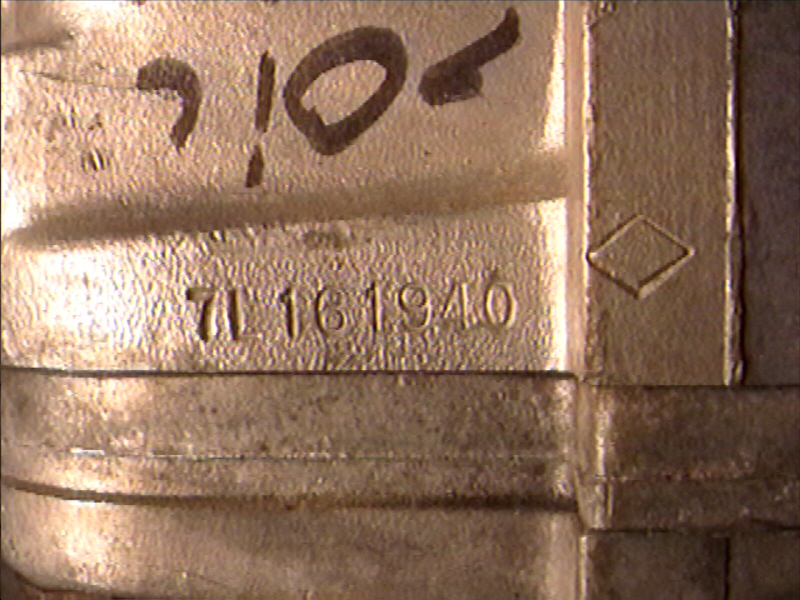

  1967trans9.jpg (292155 bytes)  vin # sample stamped on top of trans for Camaro.

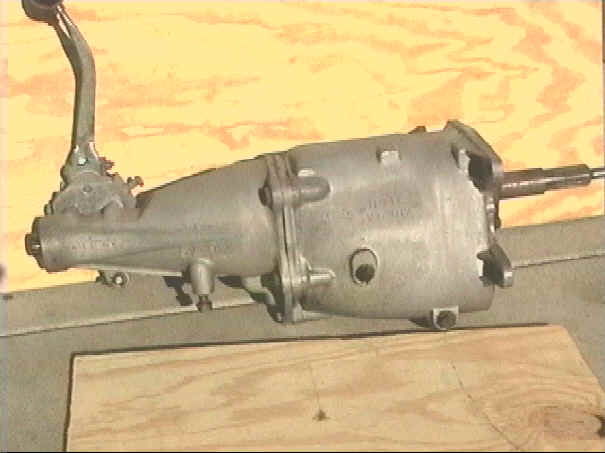

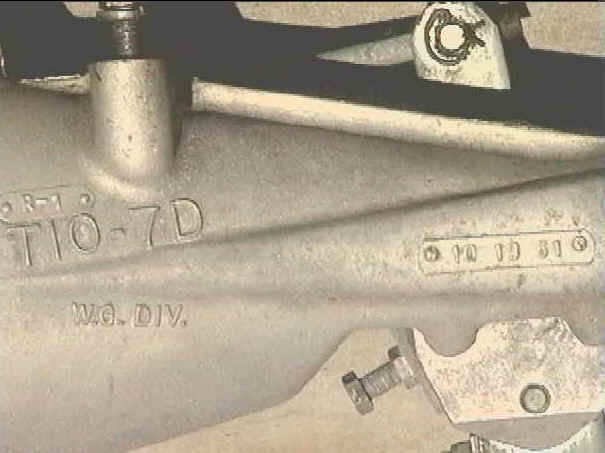

SAMPLE::THIS TRANSMISSION DATED NOV. TAIL// DEC. BODY 1961 FOR A   CORVETTE BUILT  LATE DEC.61  -THRU     JAN-FEB-MARCH -1962 CORVETTE  HAS A FRESH  COMPLETE   REBUILD  $1,700 ---have about  4 dozen vintage dated T-10's and   Muncies to choose from............

 David   858-864-2883   SHIPS VIA UPS.---    many  more   call................................................-

  "SEARCH" Corvette parts"

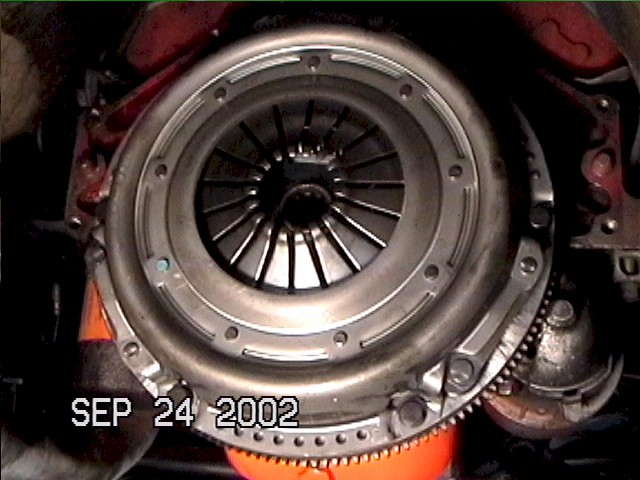

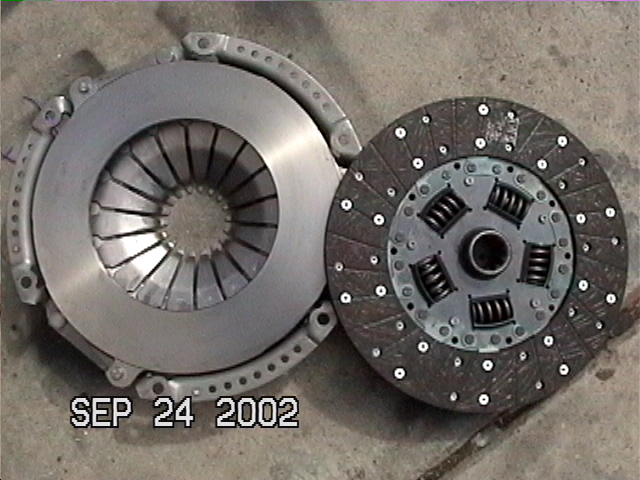

 new clutches available $195   new kit - press plate , disc, throw out bearing and pilot bushing. all new       858-864-2883

====trannys

M-22 - ROCKCRUSHERS..REBUILT=$2,500 with new gears

in vingage 1966-70 cases   5010 ,  660 ,  or  661



David   858-864-2883

click to open above

David   858-864-2883

Transmission Borg Warner 4-Speed

GM #

Year

Style

Ratio

3752838

1957-62



2:54

3772337

1958



2:20

3817365

1959-62

Double tail shaft mount

2:20

3817367

1959-62



2:54

3783311

1961-62

Double tail shaft mount

2:54

3839723

1963



2:54

3839724

1963



2:20

3880853

1965



2:20

346358

1975



2:52

346359

1975

M-20

2:20

460860

1977

M-20

2:20

14000361

1979

M-21

2:52

Muncie 4-Speed

GM #

Year

Ratio

3841435

1964

2:56

9774825

1964

2:56

3870357

1965

2:56

3880853

1966

2:20

3915088

1968

2:52

3946798

1969

2:20

3968012

1971

2:20

3978766

1971

2:20

981709

1971

2:52

6271516

1972

2:52

332559

1973

2:52

346359

1974

2:52
