Suspension and Frame

J1             58-62                 Arm Third – Used                 $238.00

J1a           58-62                 Arm Bearing, Third Arm     GM   Call        1st Quality Replacement  $52.25     Snap Ring    $7.35

J1B           58-62                 Arm Bearing Seal        Third      $2.60     Pitman Arm Ball Stud   $39.05

J1c           58-62                 Arm Support Bracket, Third Arm        Used      $250.00     Repro   $212.00

J2             58-62                 Axle Bearing, Outer, with Seal, Replaces Std. and Posi         $100.00

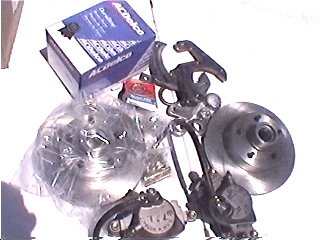

all new:    1953-62 Corvette  Disc Brake system $650   complete bolt on system with

New Delco Brake Calipers.

J2a           58-62                 Axle, Rear Std. R.H. or L.H. (1)       $175.00       Posi        $250.00

J3             58-62                 Brake Drums Front (1) Used, Resurfaced    $75.00     with Hub     $100.00    Rear (1) Resurfaced  $75.00

J3a           58-62                 Brake Backing Plates, W/Shoes Mounted (1) Front     $50.00    Rear   $50.00

J3             58-62                 Brake Drum Spring (around Drum) (1)                 $8.90

J4             58-62                 Brake Cable, Park, Front                 $33.95

J4a           58-62                 Brake Cable, Park, Rear Rh or Lh (1)                 $29.70

J5             58-62                 Brake, Emergency Arm     Boot  $5.20         On Frame   $21.10   L Brackets (3)   $14.00

J7             58-62                 Brake, Emergency Spring – Repro. (2)            $9.15

J8             58-62                 Brake Fans Repro., Heavy Duty Brakes Fronts (2)    $103.50    Rears (2)    $128.95

J9             58-62                 Brake, Repro., Rear Air Scoops – Repro., Like Original, Pair                 Call

J10           58-62                 Brake Shoe Adjust Kit, Includes Adj. Screw, Springs & Lever (2)     $50.00

                                                Brake Hose, See Section D

J11           61-62                 Brake Wheel Cylinder Bleeder Valve(5/15 or 3/8)        $27.05

J12           58-62                 Front Drag Link Assembly (3 Pcs.)                 $125.00

J12a         58-62                 Front Drag Link Seal (1)     $10.95    Drag Link Rebuild Kit      $82.70

J13           58-62                 Front Crossmember – Used       $200.00-$400.00

J13a         58-62                 Front Crossmember to Frame Bolt Kit                 $21.10

J14           58-62                 Fast Steering Adapter Repro.    $111.45      Used  $165.00       Adapter Stud                 $67.60

J15           58-62                 Front Steering Pitman Arm – Used        $50.00       Pitman Arm Nut $5.60

J16           58-62                 Front Coil Spring, All Exc. Hd (1) Used        $35.00 New         $46.80                 GM – NOS        $74.00

J16a         58-69                 Front Coil Spring, Hd (1) Used        $160.00 New         Call

J17           58-62                 Front Spindle (1)  $100.00  Front Spindle nut with washer (4pcs) $6.90

J17a         58-62                 Front Spindle Support Rh or Lh (1), UsedL.H.          $150.00    R H. $175.00

J18           58-62                 Front Stabilizer Bar 58-59       $160.00         60-62      $150.00

J18a         58-62                 Front Stabilizer Bar Brackets (2)                 $40.00

J18b         58-62                 Front Stabilizer Bushing (1) Poly      $12.20     Correct, Like Original  $7.25

J18c         58-62                 Front Stabilizer Link Grommet                 $1.20

J18d         58-62                 Front Stabilizer Link Bolt          $9.00

J18e         58-62                 Front Stabilizer Link Washer  $1.50

J18f          58-62                 Front Stabilizer Link Spacer    $4.00

J19           58-62                 Front Stabilizer Bar Link Kit            $22.30

J20           58-62                 Front Lower Shock Mount Bracket (1)NOS      $35.00    Repro.    $15.55    Used $15.00

J20a         58-62                 Front & Rear Shock Bushing Retainer                 $1.00

J21           58-62                 Front Wheel Hub (1)                 $50.00

J22           58-62                 Front Inner Wheel Bearing (1)                 $54.05

J23           58-62                 Front Outer Wheel Bearing (1)                 $33.90

J24           58-62                 Front Wheel Bearing Seal (1)Replacement    $6.35       Original        $15.00

J25           58-62                 Front Wheel Grease Cup (1) – Repro.                 $7.00

J26           58-62                 Front Suspension Bumpers (4) – 2 Upper and 2 Lower      $16.45

J26a         58-62                 Front Suspension Aluminum Shim (1)            $18.80

J27           58-62                 Upper”A” Frame (1) – Used       $125.00

J27a         58-62                 Lower “A” Frame RH or LH (1) – Used or NOS    R.H. Used    $175.00                 R.H. NOS        $350.00                 L.H. Used       $175.00                 L.H. NOS        $275.00

J28           58-62                 Kingpin-Rebuild Kit, Both Sides     $48.00

J29           58-62                 Lower Inner Pivot Pin Kit (2)     $130.00

J29a         58-62                 Lower Outer Pivot Pin Kit (2) – 134                 $80.00

J29b         58-62                 Upper Inner Pivot Pin Kit (2) – 131                 $75.00

J29c         58-62                 Upper Outer Pivot Pin Kit (2) – 133                 $80.00

J30           58-62                 Front End-Rebuild Kit Complete      Not Foreign, U.S. 1st Quality, (Includes (10) Pin Kits, (2) Link Kits, (4) Tie Rod Ends)                 $472.23

J30a         58-62            Front End Shaft Bushing Kit       $23.45 Upper Inner Tower Repair Kit               $32.15

J31           58-62                 Rear Pinon Seal                 $14.00

J31a         58-62                 Rear Pinon Gasket                 $6.00

J32           58-62                 Rear Frame Crossmember     New      $279.40     Rivet Kit      $6.05

J33           58-62                 Rear Axle Bumper Frame, New (1) 58     $22.35    59-62      $22.35                 58 Spring    $22.35

J34           58-62                 Rear Spring 4 Leaf (1) Used, Grooved       Call             New     $115.85

J34a         58-62                 Rear Spring 5 Leaf (1)Used Grooved        Call         New   $167.40

J34b         58-62                 Rear Spring“U” Bolts (w/nuts; 4 U's & 8 nuts    $41.35     Nut (1)    $5.25

J34c         58-62                 Rear Spring Liners, Both Springs 4-Leaf     $44.50   4-Leaf (Correct Rear Spring Liners, only)  $140.00      5-Leaf       $80.00   5-Leaf(Correct Rear Spring Liners, only)    $190.00

J34d         58-62                 Rear Spring Bands, Exactly as Original, Both Springs  $20.00

J34e         58-62                 Rear Spring Front Eyepin (1)Exact        $23.80  Nut with lock washer(pr)   $3.60

J34f          58-62                 Rear Spring Front Bracket (1) LH or RH           $50.15

J34g         58-62                 Rear SpringRubber Bushing Set (12)    $14.10

J34h         58-62                 Rear Spring Shackle Unit (1 side)NOS  $75.00        Repro      $30.50

J34i          58-59                 Rear Spring, Lower Perch (1) (Shock Mount)  $40.00

J34j          58-59                 Rear Spring, Lower Perch (1) (Shock Mount)  $56.25

J34j             60-62                     Rear Spring, Lower Perch(1) with studs (Shock Mount) Repro    $61.65

J35           60-62                 Rear Stabilizer Bar, with Brackets Bushings and New Links – Repro.    $165.00

J35a         60-62          Rear Stabilizer Bar (used)   $125.00     Repro  $111.15     (4) Brackets with Shims      $75.00

J35b         60-62                 Rear Stabilizer Bar Bushings, Correct (1)      $7.00

J35c         60-62                 Rear Stabilizer Bar Link Kit (2)     $16.45

J36           58-62                 Rear Rebound Straps Correct Thickness(with hardware)(2)        $47.65

J36a         58-62                 Rear Rebound Straps Rivet and Plate Set           $14.10

J37           60-62                 Rear Strut Rod Bushing (1)      $9.40

J37a         60-62                 Rear Strut Rods(2)     Used     $200.00          (2) Repro     $118.95

J37b         59-60                 Rear Strut Rod to Frame Stud with Nut & Washer(1)   $22.35

J37c             60-62                     Strut Rod Brackets (2)        On Axle Housing     $62.25    On Frame    $89.10

J38           58-62                 Rear Wheel Outer Bearing Seal (1)                 $15.00

J38a         58-62                 Rear Wheel Bearing (1)                 $105.95

J39           58-60                 Shock Absorber, Front (1 ) Gas Filled                 $34.75

J39a         58-60                 Shock Absorber, Rear (1) Gas Filled                 $36.14

J39b         61-62                 Shock Absorber, Front, Like Original (1)                 $44.55

J39c         61-62                 Shock Absorber, Rear, Like Original (1)                 $44.55

J40           58-62         Steering Box Rebuild Kit with Worm and Sector Gears, Shaft, All   Bearings and Seals        $419.00

J40a         58-62           Steering Column and Box, Used       $400.00 Shaft        $75.00

J40b         58-62            Steering Box and Column, Completely Restored and Rebuilt with New Parts       $869.00

J40c         58-62                 SteeringBox and Column, Rebuilt, with Trade       $669.00

J40d         58-62                 Steering Box Bearing and Seal Kit     $56.20     Box Side Gasket    $2.90      Seal Arm Shaft       $10.00

J40e         58-62                 Steering Stop Bracket, Bolts to Fame    Repro     $50.95     Used     $45.00

J40f          58-62                 Steering Column    Box Spacer – Used        $45.00      With Bolts   $60.00

J41           58-62                 Tierod End, Clamp                 $6.35

J41a         58-62                 Tierod Ends     LH(1)    $22.35         RH(1)    $22.35

J41b         58-62                 Tie Rod Tube (1 )                 $24.65

J42           62                 Tire 1” Whitewall

        Firestone or Goodrich (1)                 $125.00

Firestone or Goodrich (5)                 $590.00

J42a         58-61                 Tire 2 3/8” Whitewall

      Firestone (1)                 $125.00

    Firestone (5)                 $590.00

    U.S. Royal (1)                 $120.00

    U.S. Royal (5)                 $575.00

J42b         62             Tire 1” Whitewall U.S. Royal (1)                 $117.00      U.S. Royal (5)                 $560.00

J43           58-62         Wheels, New (1) 5x15, with Nubs (1)            $123.00       (4)            $450.00

J43a         58-62         Wheels, 5x15, Correct with Nubs (1) Used, Welded   $125.00     Riveted  $95.00

J43b         58-62                 Wheels, 5 1/2x15, Small Hub Cap Optlon (1) – New                 Call
